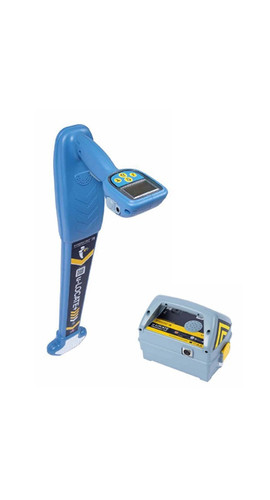

Schonstedt U-LOCATE+ Underground Wire Locator
Model Number: u-Locate
Overview
The Schonstedt U-LOCATE+ Underground Wire Locator is a state-of-the-art tool designed for precise identification and tracing of underground utilities. Perfect for single utility locates, this robust locator helps you avoid hitting or damaging buried utilities by providing swift and accurate tracing capabilities. Built to withstand all types of weather and environments, the u-LOCATE+ is an essential tool for any field technician, contractor, or surveyor.
Features
- Accurate Utility Identification: Ideal for single utility locates where swift, accurate identification and tracing of one service amongst others is required.
- Damage Prevention: Avoid hitting or damaging buried utilities with precise locating technology.
- Robust Design: Built to withstand all types of weather and environments, ensuring reliability and durability.
- Easy to Use: User-friendly interface with left/right arrows and audio signals to guide you towards the buried utility.
- Optimized Frequency: Frequency optimized to trace a broader range of utilities over longer distances.
- Depth Estimation: Provides depth estimation at the press of a button for accurate measurements.
- Sonde Mode: Locate and trace Sondes or inspection cameras inserted into non-metallic pipes, ducts, and concrete conduits.
Additional Features
- Premium Build Quality: Delivers the premium build quality, reliability, and ergonomics that customers demand and rely on.
- Ideal for Mark Verification: Perfect for 811 mark verification and private locates.
- Passive Mode: Enables safe identification and tracing of power cables carrying current.
- Guidance Arrows: Left/right guidance arrows on the display for fast and easy location and tracing of buried utilities.
- High-Frequency Signal: Ideal for tracing water, gas, and telecom networks over long distances.
- Online Support: Minimize downtime with online training videos and support.
Includes
- u-LOCATE Receiver with batteries
- u-LOCATE Transmitter with batteries
- Conductive Clips
- Soft Carrying Case
- Ground Stake & Magnet
- Welcome Placard to download the manual, register the unit, and watch training videos
- 1-year warranty (with an option to extend to 3 years at the point of purchase)
Specifications
- Operating Frequencies: 33kHz and 82kHz
- Sonde Frequency: 512Hz
- Max Depth Sonde Mode: 5 to 15 feet
- Passive Mode: 50/60Hz
- Max Depth Active Mode: 19 feet
- Positional Accuracy: 5%
- Battery Requirements: 6 x AA for Receiver, 4 x D for Transmitter
- Usage Hours: 20 hours
- Audio Output: 10-1500Hz (determined by signal strength)
- Sound Pressure Level: 0-70 dB SPL (volume controlled)
- Ingress Protection Rating: Weatherproof to NEMA3S and IP65
- Weight Including Batteries: 8 lbs
