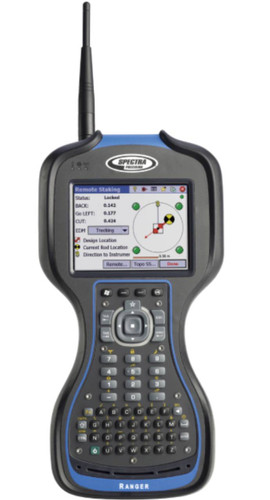

Spectra Precision Ranger 3XR Data Collector
Zoom the image with the mouse

Spectra Precision Ranger 3XR Data Collector

(No reviews yet) Write a Review
$6,650.00 $5,625.50
(You save $1,024.50)
Free Shipping

Related Products

Customers Also Viewed


NOTE: The Ranger 3L does not come with cellular capability or 2.4 GHz radio.

          The Ranger 3XC comes with cellular capability but not 2.4 GHz radio.

          The Ranger 3RC comes with 2.4 GHz radio but not cellular capability.

          The Ranger 3XR comes with both cellular capability and 2.4 GHz radio.

Overview for the RG3-M12-003 Spectra Ranger 3XR Data Collector with Survey Pro Max and QWERTY Keypad

The Spectra Ranger 3XR Data Collector is a handheld field computer that helps in collecting and calculating accurate field data such as coordinates, angles, distances, elevations, and more. Equipped with a 2.4 GHz radio module, this data collector works seamlessly with the existing Spectra robotic total stations. It also comes with a built-in GPS receiver for precise navigation and improved signal.

This Spectra Ranger data collector features a customized 5-megapixel camera with LED flash that includes a time and location data from the GPS receiver. It operates on a high-speed 800 MHz processor and a 256 MB RAM memory which is designed for fast software applications. The 3XR also comes with an 8 GB onboard memory that is perfect for storing large amounts of data. In addition, it runs on Windows Mobile 6.5 Professional operating system and a Spectra Survey Pro Max Field software.

With an outdoor rugged design, the Spectra Ranger 3XR has an IP67 rating which protects the device from dust and is water submersible up to 3.3 feet water for 30 minutes. It uses Li-ion rechargeable battery that lasts up to 30 hours on a single charge. Plus, the Ranger 3XR boasts a large, dual-layer glass touchscreen display and a full keyboard for easy data encoding.

Configuration Options

The Spectra Ranger 3XR Data Collector has two available keypad styles to choose from. Please select your preference from the menu above.

  • 800981-27: SurvCE and Alphanumeric Keypad
  • RG3-M11-003: Survey Pro Max and Alphanumeric Keypad
  • RG3-M12-003: Survey Pro Max and QWERTY Keypad
    ARM® Cortex™ - A8 800 Mhz 800 Mhz 800 Mhz 800 Mhz
    SDRAM 256 MB 256 MB 256 MB 256 MB
    Data Storage (On-board Flash) 8 GB 8 GB 8 GB 8 GB
    Integrated Bluetooth Standard Standard Standard Standard
    Wi-Fi Standard Standard Standard Standard
    3G GSM WWAN Standard N/A Standard N/A
    2.4 GHz robotic radio Module Standard Standard N/A N/A
    Compass Standard Standard Standard Standard
    Accelerometer Standard Standard Standard Standard
    5MP Camera with LED flash Standard Standard Standard N/A
    Navigation grade GPS Standard Standard Standard Standard
