Spectra SP80 GNSS 240-channel RTK Rover
Zoom the image with the mouse

Spectra SP80 GNSS 240-channel RTK Rover

(No reviews yet) Write a Review

Call 713-781-0550 for our SP80 Special Deals!

SKU:
94334-50
Condition:
New
Brand

Related Products

Customers Also Viewed

Description

0% 24 Months
Financing Available

Call for your customized quote or email
8-5 Central Time M-F 713-781-0550

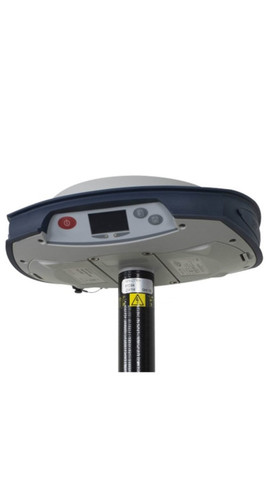

Spectra Precision SP80 GNSS Single Receiver

The Spectra Precision SP80 is a new generation GNSS receiver. SP80 uses the unique Z-Blade technology to track and process all available GNSS signals, to provide the most reliable measurements and the highest possible accuracies. It also offers the best communications and connectivity capabilities available today including SMS and email alerts and anti-theft protection. The ergonomic design and unlimited operating time make the SP80 an extremely versatile and complete solution.

Featured highlights

  • New 240-channel 6G ASIC
  • Z-Blade GNSS-centric technology
  • 3.5G cellular modem
  • Internal TRx UHF radio
  • Built-in WiFi communication
  • SMS and e-mail alerts
  • Anti-theft protection
  • Hot-swappable batteries

SP80 System Overview

The Spectra Precision SP80 is a next generation GNSS receiver that combines decades of GNSS RTK technology with revolutionary new GNSS processing.

Unique Z-Blade GNSS-centric Technology

Exclusive Z-Blade processing technology running on a next generation Spectra Precision 240-channel 6G ASIC fully utilizes all 6 GNSS systems: GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS. The unique GNSS-centric capability optimally combines GNSS signals without dependency on any specific GNSS system; allowing operations in GLONASS-only or BeiDou-only mode if needed.

SMS and Email Alerts

SP80 has a unique combination of communication technologies including an integrated 3.5G GSM/UMTS modem, Bluetooth, Wi-Fi connectivity, and optional internal UHF transmit radio. The cellular modem may be used for SMS (text message) and e-mail alerts as well as as regular Internet or VRS connectivity. Likewise, SP80 can connect to the Internet from the field using WiFi hotspots, where available.

Anti-Theft Protection

A unique anti-theft technology secures SP80 when installed as a field base station in remote or public places and can detect if the product is moved or stolen. This technology allows the surveyor to lock the device to its position and make it unusable if the device is moved elsewhere. Furthermore, an SMS or e-mail will be sent to the surveyor’s mobile phone or computer, providing the receiver’s current coordinates allowing tracking of its position.

Reliable Design for the Field Use

Dual hot-swappable batteries can be easily exchanged in the field for an interruption-free working day. The impact-resistant glass-fiber reinforced casing ensures that SP80 can handle the toughest outdoor conditions. The patented UHF antenna, set inside the rugged fiberglass rod, extends the range of RTK radio performance. The sunlight-readable display offers instant access to key product information.

The Spectra Precision Experience

Spectra Precision Survey Pro or FAST Survey software is specifically tailored for the SP80 GNSS receiver providing easy-to-use, yet powerful GNSS workflows. Spectra Precision Survey Office Software provides a complete office suite for post-processing GNSS data and adjusting survey data, as well as exporting the processed results directly back to the field or to engineering design software packages.

Product specifications

  • Constellation : GPS/GLONASS/BEIDOU/GALILEO/QZSS/SBAS
  • Frequency : L1/L2/L5
  • Channels : 240
  • Update Rate : 0.05 sec
  • Data format : RTCM 2.1, 2.3, 3.1, 3.2, ATOM, CMR (+), NMEA
  • Raw data output : Yes
  • Real-time Accuracy - RTK mode (HRMS) : 8 mm
  • Real-time Accuracy - DGPS mode (HRMS) : < 25 cm
  • Real-time Accuracy - SBAS mode (HRMS) : < 50 cm
  • Post-Processed Accuracy (HRMS) : 0.3 cm + 0.5 ppm
  • Time to first fix : 2 sec
  • Initialization range : > 40 km
  • Communications : WiFi, UHF 2W TRx, GSM/UMTS/3.5G, BT
  • Unit size (mm / inches) : 22.2x19.4x7.5 cm / 8.7x7.6x3.0 in
  • Weight : 1.17 kg / 2.57 lb
  • Display : OLED
  • Memory : 2 GB + SD
  • Temp Min (°C) : -40°C / -40°F
  • Temp Max (°C) : 65°C / 149°F
  • Waterproof : IP67
  • Shock & vibration : ETS300 019 & MIL-STD-810F
  • Power (type - lifetime) : 2x2600 mAh Li-Ion / ~10 hrs
  • Antenna Type : Internal
  • Firmware options : Yes
  • Software options : Yes

What's included

  • SP80 GNSS Receiver and Radio
  • PN 92600-10 - Battery - Li-Ion, 2.6Ah, 7.4V 19.2 Wh (x2)
  • PN 61116-10 - Charger - Dual Li-Ion Battery Charger
  • PN 78651-SPN - Power Cord Kit with C7 Connector
  • PN 78650-SPN - Power Supply,65W,19V,3.42A,100-240VAC
  • PN 93374 - Tape Measure, 3.6m / 12ft
  • PN 88400-50-SPN - Extension Pole 7cm
  • PN 67901-11 - Cable USB Client to Host
  • PN 802142-04 - Hard Case, including Large Soft Bag
  • Product Software and Documentation Leaflet
  • SP80 Quick Start Guide
  • Anti-Theft Technology Sticker
  • 2 year manufacturer's warranty
